Dana 30/44/60 Stage 8 Xlock Spindle Nut

Stage 8 Locking Spindle Nuts for Dana 44 - James Duff Inc.

Dana 30/44/60 Stage 8 Xlock Spindle Nut

SKU 3844/3846 Categories Big Bronco Drivetrain, Bronco II Drivetrain, Early Bronco Drivetrain, Not Eligible for Black Friday, Ranger Drivetrain, Shop by Brand, Stage 8

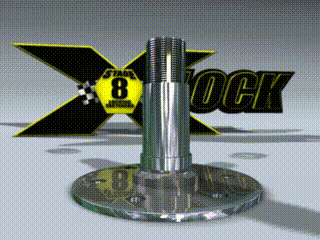

Introducing the patented Stage 8 Locking Spindle Nut, engineered for the Dana 30, 44, and 60 axles. This innovative assembly features a robust design that offers precise preload control and exceptional durability.

$109.95

Product Description

The Stage 8 Locking Spindle Nut is comprised of five meticulously designed components:
– Thrust washer
– Specialized notched washer
– Adjustable spindle nut (settable to individual preload values)
– Locking retainer
– Heavy spring steel snap ring

Installation is straightforward and requires no specialized tools, allowing users to achieve precise locking within half a degree of any desired position. This means you can avoid both over-torquing and under-torquing, thereby ensuring that the necessary bearing preload is consistently maintained. The design is particularly resilient against severe reverse torque, making it an essential upgrade for off-road enthusiasts and those venturing far from service locations.

Compatibility includes a variety of vehicles equipped with Dana 30, 44, or 60 axles, such as:
– Early Broncos
– Big Broncos
– Dentside F-Series Trucks
– Blazers
– Scouts
– Jeeps
– Ramchargers

Each axle will require two spindle nuts for complete functionality.

Features & Benefits:

Patented locking mechanism for enhanced safety
Easy installation with no specialized tools needed
Adjustable spindle nut for individualized preload settings
360-degree locking capability to prevent over or under torque
Robust construction capable of withstanding extreme conditions

Technical Specs:

Compatibility: Dana 30, 44, 60
Components: Thrust washer, notched washer, spindle nut, locking retainer, snap ring
Position Locking: ±0.5 degrees

Additional Information

Additional information

Weight	1 lbs
Dimensions	4 × 4 × 4 in
Choose Axle	Dana 30/Dana44 (3844), Dana 60 (3846)
