Description

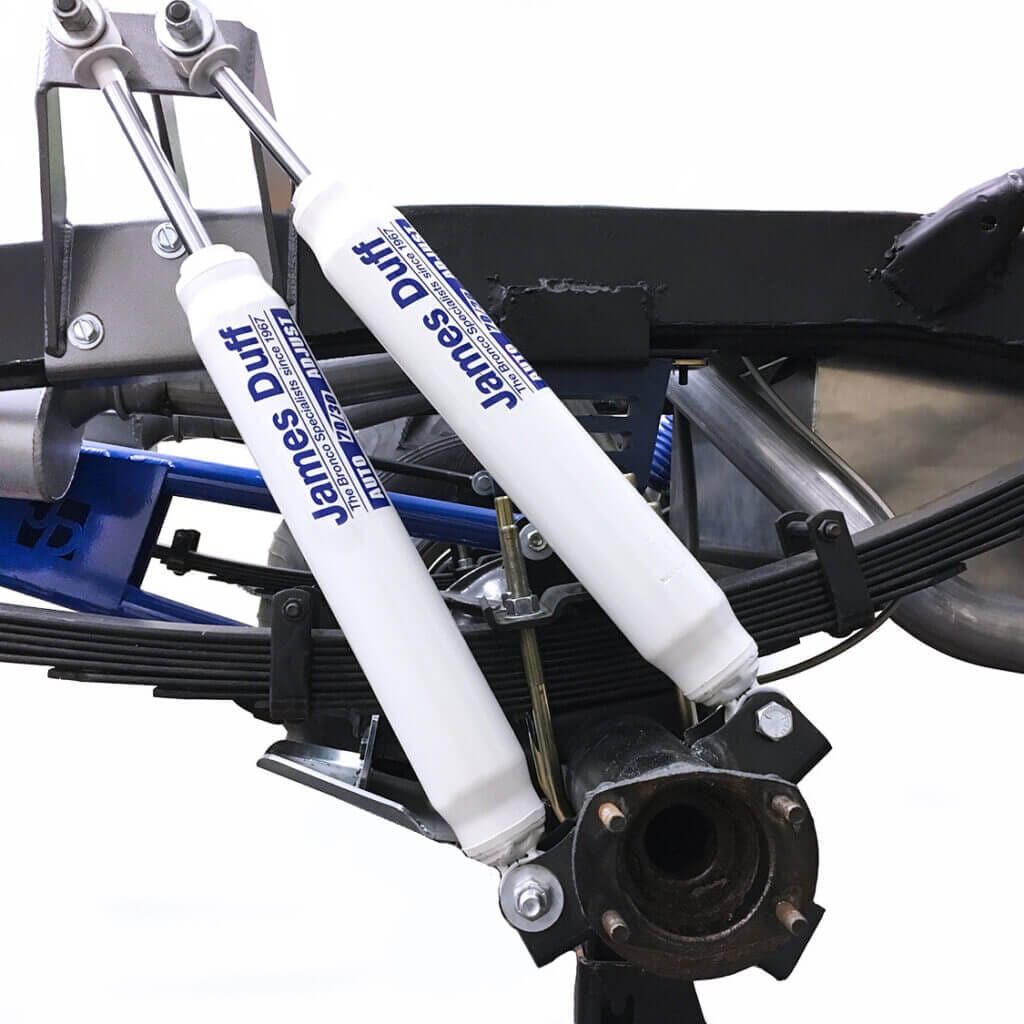

Don’t get caught up in the hype of rear shock mounts. After testing other inboard rear shock mount setups, we quickly discovered that they offer very little suspension control and enhance body roll. By using our outboard rear shock mount, you’ll have ultimate control of your Bronco, minimize axle wrap and increase flexibility! Designed to maximize the suspension travel by removing the limiting stock shock mounts. These new mounts take advantage of the extra clearance above the frame created with a body lift & Compatible with single and dual shock configurations. By utilizing forward-angled shock mounting and Long travel shocks, you get Far more vertical travel and a reduction in axle wrap! Requires a minimum of 2″ body lift and minor sheet metal trimming. Now comes Midnight Black Powder coat. Frame mount is a bolt-on design. Welding it to the frame is optional. For single shock setup’s you have more control and flexibility to dial in your Bronco’s articulation by having two upper mounting points for your rear shocks.

• Frame mounts 100% bolt-on – welding optional
• Comes in Midnight Black Powder Coat
• Maximize Wheel Travel when combined with Duff Shocks
• 70/30 classic Dual Shock or single MS2020 shock Control Minimizes Axle Wrap and Prevents Driveshaft Failure
• Welding Required for Lower Shock Mounts on Axle Tube
• Minimum 2″ body lift, For 0″-1″ body lift, check out #5215

Want to know what’s involved in the installation? Download instructions here.
